我們利用我公司獨創的最新微細加工技術，制成最適合本產品的線圈的同時，通過采用了L型電極結構，實現了在0402尺寸的世界最高級的Q值特性。新系列LQP02TQ6N8 (電感值6.8nH) 在2.4GHz頻段更達到了Q值30，與至今為止我公司LQP02TN6N8系列產品的Q值23相較之下，大約提升了30%。并且，電感器的產品陣容也擴大到0.4nH～10nH范圍的31個項目，對于電感值的偏差也達到了對應±0.1nH (0.4～3.9nH) 、±3% (4.3～10nH) 的窄偏差。今后我們將進一步實現偏差值的最小化，同時也將繼續推出擴大電感值的產品。
尺寸代號 100505 in mm (0402 in inch), 鐵氧體疊層型

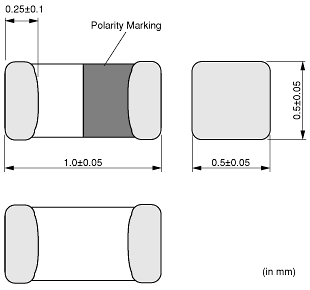

產品實物照片及外形尺寸圖示
 |
 |
| 電感型號 | 尺寸代號 mm (inch) | 電感徝 | 電感徝 偏差 | 額定電流 (Itemp) | Rdc (max.) | SRF (min.) |
| LQG15HN1N0S02 | 1005 (0402) | 1.0nH | ±0.3nH | 300mA | 0.10Ω | 6000MHz |
| LQG15HN1N1S02 | 1.1nH | |||||
| LQG15HN1N2S02 | 1.2nH | |||||
| LQG15HN1N3S02 | 1.3nH | |||||
| LQG15HN1N5S02 | 1.5nH | |||||
| LQG15HN1N6S02 | 1.6nH | |||||
| LQG15HN1N8S02 | 1.8nH | 0.10Ω | ||||
| LQG15HN2N0S02 | 2.0nH | 0.12Ω | ||||
| LQG15HN2N2S02 | 2.2nH | 0.15Ω | ||||
| LQG15HN2N4S02 | 2.4nH | 0.16Ω | ||||
| LQG15HN2N7S02 | 2.7nH | 0.17Ω | ||||
| LQG15HN3N0S02 | 3.0nH | 0.18Ω | ||||
| LQG15HN3N3S02 | 3.3nH | 0.19Ω | ||||
| LQG15HN3N6S02 | 3.6nH | 0.19Ω | ||||
| LQG15HN3N9S02 | 3.9nH | 0.19Ω | ||||
| LQG15HN4N3S02 | 4.3nH | 0.21Ω | ||||
| LQG15HN4N7S02 | 4.7nH | 0.23Ω | ||||
| LQG15HN5N1S02 | 5.1nH | 0.24Ω | ||||
| LQG15HN5N6S02 | 5.6nH | 0.26Ω | 5300MHz | |||
| LQG15HN6N2S02 | 6.2nH | 0.27Ω | 4300MHz | |||
| LQG15HN6N8J02 | 6.8nH | ±5% | 0.29Ω | 4200MHz | ||
| LQG15HN7N5J02 | 7.5nH | 0.31Ω | 3900MHz | |||
| LQG15HN8N2J02 | 8.2nH | 0.33Ω | 3600MHz | |||
| LQG15HN9N1J02 | 9.1nH | 0.34Ω | 3400MHz | |||
| LQG15HN10NJ02 | 10nH | 0.35Ω | 3200MHz | |||
| LQG15HN12NJ02 | 12nH | 0.41Ω | 2800MHz | |||
| LQG15HN15NJ02 | 15nH | 0.46Ω | 2300MHz | |||
| LQG15HN18NJ02 | 18nH | 0.51Ω | 2100MHz | |||
| LQG15HN22NJ02 | 22nH | 0.58Ω | 1800MHz | |||
| LQG15HN27NJ02 | 27nH | 0.67Ω | 1600MHz | |||
| LQG15HN33NJ02 | 33nH | 200mA | 0.67Ω | 1500MHz | ||
| LQG15HN39NJ02 | 39nH | 1.06Ω | 1200MHz | |||
| LQG15HN47NJ02 | 47nH | 1.15Ω | 1000MHz | |||
| LQG15HN56NJ02 | 56nH | 1.20Ω | 800MHz | |||
| LQG15HN68NJ02 | 68nH | 180mA | 1.25Ω | 800MHz | ||
| LQG15HN82NJ02 | 82nH | 150mA | 1.60Ω | 600MHz | ||
| LQG15HNR10J02 | 100nH | |||||
| LQG15HNR12J02 | 120nH |
電感徝1.0nH ±0.3nH 電感徝測試頻率100MHz 額定電流(Itemp) *根據溫...
